Chemistry: LFP
Battery modules Quantity: 5-8
Battery System Voltage: 51,2 VDC*n
Battery System Current: 100Ah
Battery System Capacity: 5,12 kWh*n
Battery Module: HV48100
Battery System Charge Voltage: 44,8V*n – 58,4V*n
Max Continuous Charge/Discharge Current: 50A
Depth of Discharge (DoD): 90%
Round-Trip Efficiency: >95%
Communication Protocol: RS485 / CAN
Cycle Life: >6000
Operating Temperature: 0°C – 50°C
Operating Humidity: 0% – 95% non condensating

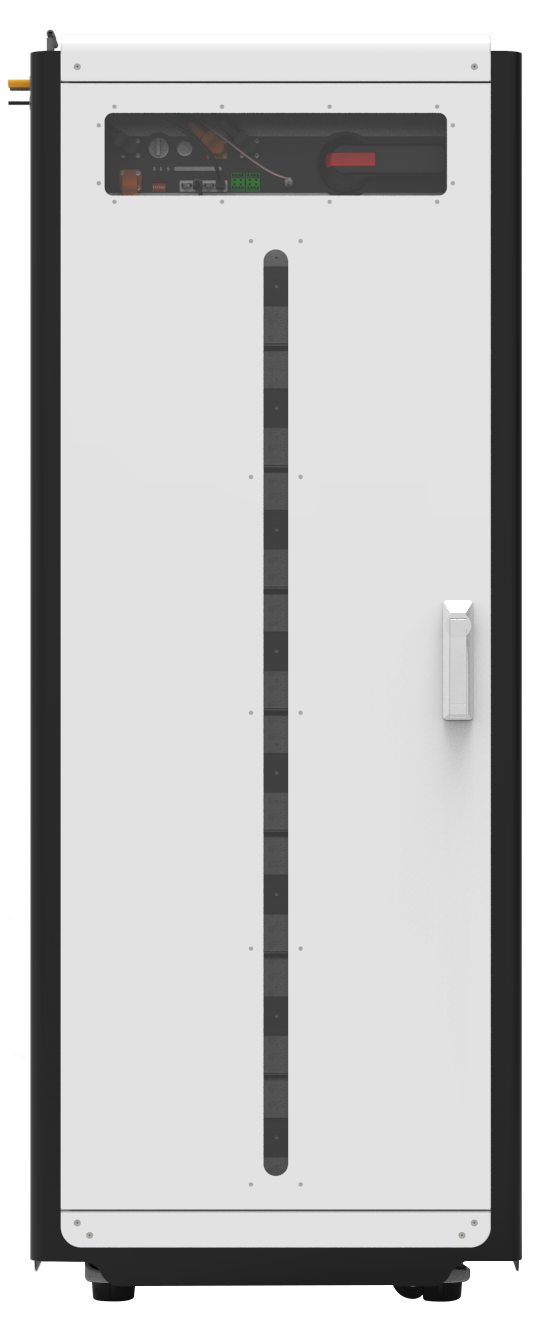

Dimmensions: W600mm x D640mm x H1600mm (Cabinet)
Weight: 100kg + 43kg *n
Cooling Strategy: Free Cooling
Protection Code: IP20
