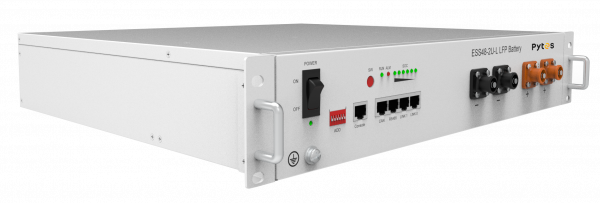

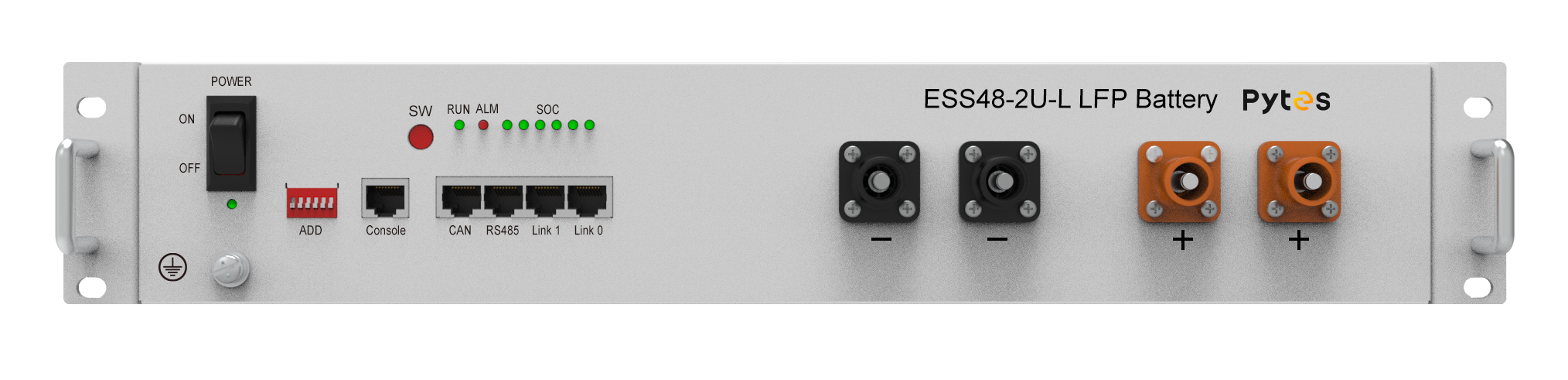

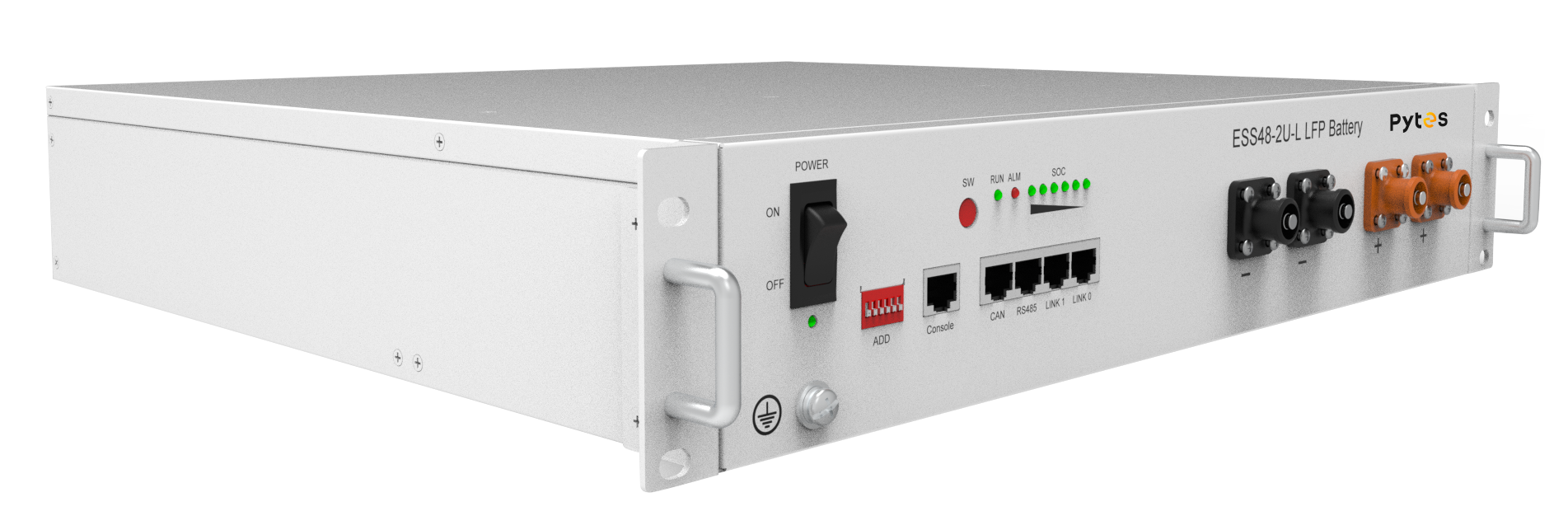

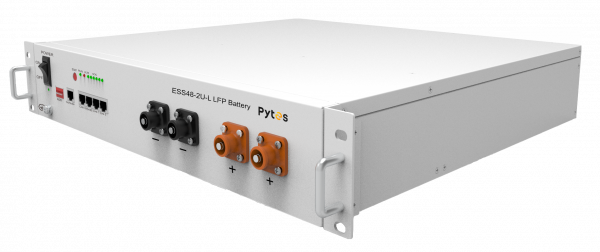

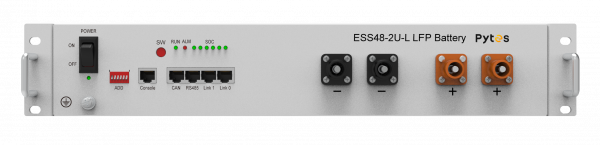

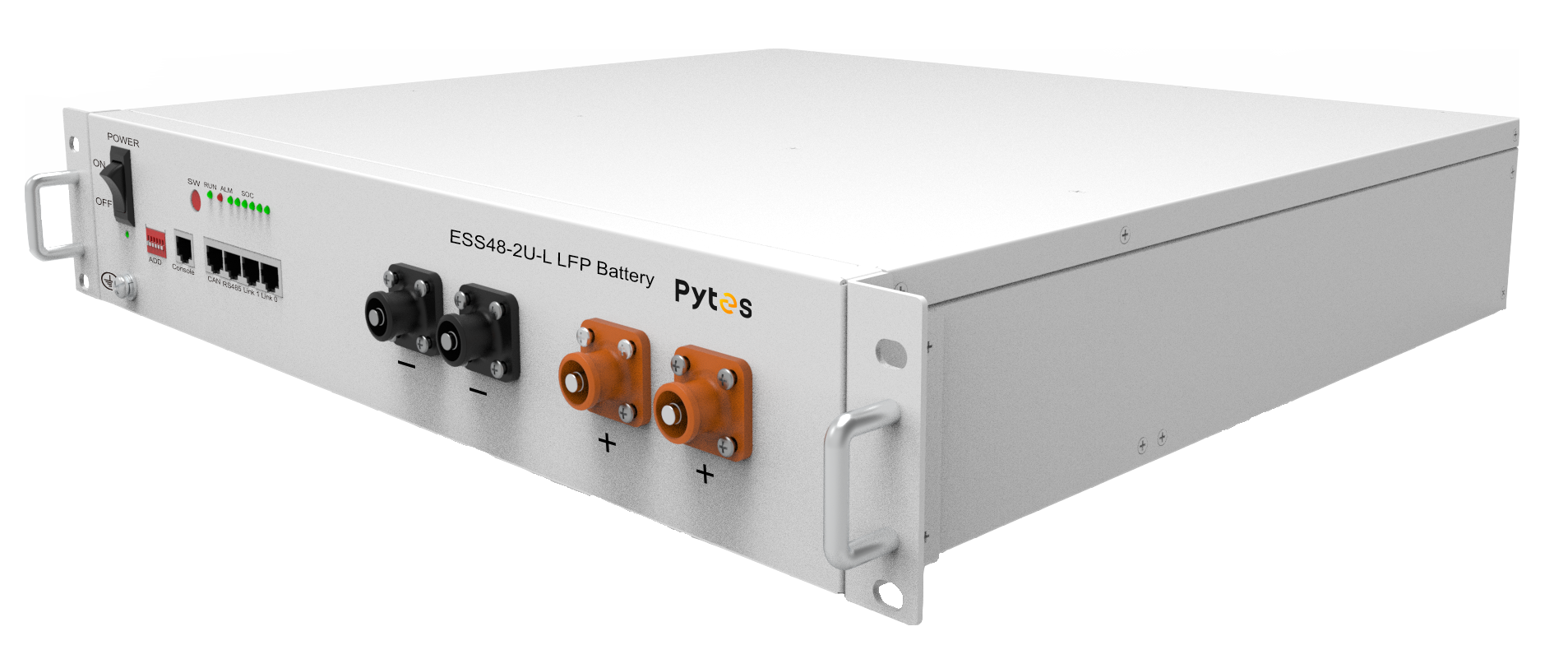

E-BOX-4850 2,4kW – 48V

De E-BOX-4850 batterij is geschikt om als stand-alone batterij te werken of als modulaire cel in “Electrical Storage System(ESS)” om de capaciteit te verhogen. Compatibel met 21 verschillende omvormers.

Artikelnummer: PYTES E-BOX-4850 Categorie: Tag:

Chemistry: LFP
Nominal Voltage: 48V
Voltage Range: 45V – 54V
Nominal Current: 50Ah
Nominal Capacity: 2,4 kWh
Unit Dimension: L440mm x W420mm x H89mm (2U)
Unit Weight: 25kg
Maximum Charge Current: 50A
Recommended Charge Current: 25A
Maximum Discharge Current: 50A
Recommended Discharge Current: 25A Round-Trip Efficiency: >95% Communication Protocol: RS232 – RS485 – CAN
Cycle Life: >6000
Warranty: 10 years
Charge: 0°C – 50°C
Discharge: -10°C – 50°C
Connect style: Parallel
Storage Temperature: 20°C – 35°C

Gewicht 25 kg
Afmetingen 44 × 42 × 8,9 cm
