Chemistry: LFP
Nominal Voltage: 51,2V
Voltage Range: 47,5V – 57,6V
Nominal Current: 100Ah
Nominal Capacity: 5,12 kWh
Unit Dimension: L440mm x W620mm x H117mm (2,6U)
Unit Weight: 51kg
Maximum Charge Current: 100A
Recommended Charge Current: 50A
Maximum Discharge Current: 100A
Recommended Discharge Current: 50A Round-Trip Efficiency: >95% Communication Protocol: RS232 – RS485 – CAN
Cycle Life: >6000
Warranty: 10 years
Charge: 0°C – 50°C
Discharge: -10°C – 50°C
Connect style: Parallel
Storage Temperature: 20°C – 35°C

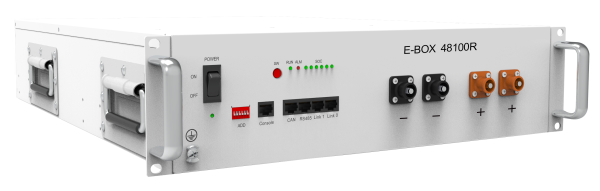

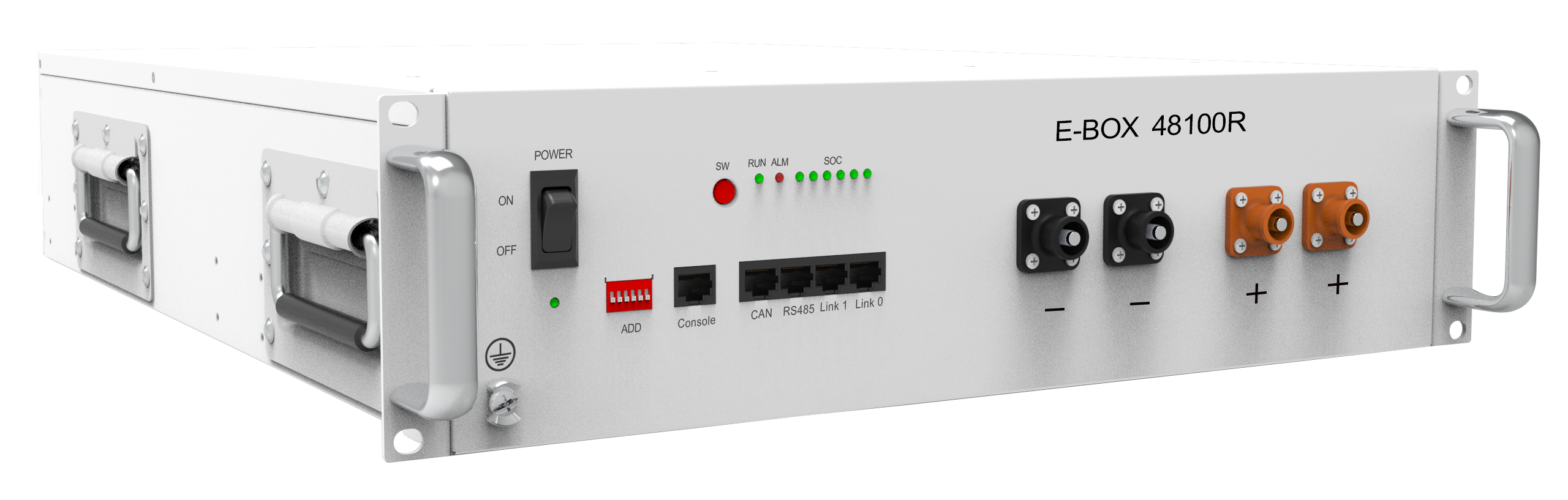

E-BOX-48100R 5,12kW – 48V
De E-BOX-48100R batterij is geschikt om als stand-alone batterij te werken of als modulaire cel in een “Electrical Storage System (ESS)” om de capaciteit te verhogen. Compatibel met 21 verschillende omvormers.
De E-BOX-48100R is compatibel met de R-BOX en FOREST RB behuizingen.
| Gewicht | 51 kg |
|---|---|
| Afmetingen | 44 × 62 × 11,7 cm |
